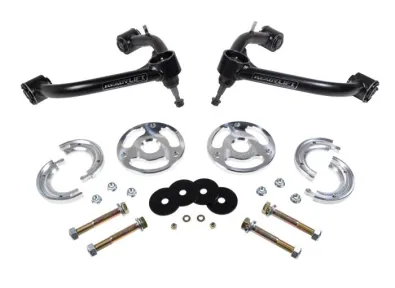

The leveling kit provides the required amount of level lift without causing compromises to the factory strut geometry and clearances with our new interlocking pre-load spacer for ease of installation. Considering the factory upper control arm's limited dynamic range when the AT4X/ZR2 truck is further lifted, this leveling kit includes our popular tubular upper control arms with corrected ball joint cup angles, heavy-duty replaceable ball joints, and our new Terrain Control Technology (TCT) maintenance-free pivot bushings with side-biter washers to improve alignment retention. Tire 33x11.50 on 20x9 0 offset wheel Max tire with trimming 295/60-20, 20x9 0 offset wheel Features interlocking pre-load spacer for easy installation Includes DOM tube steel upper control arms with TCT maintenance-free pivot bushings. Retains factory turning radius. Includes ReadyGuard Powertrain Warranty. NOTES: Use of Auto 4 Hi feature not recommended.
- Note: AT4X and ZR2 may not fit the same size tire. This is due to the difference in the front fender opening design.
- Tire 33x11.50 on 20x9 0 offset wheel
-
Max tire with trimming 295/60-20, 20x9 0 offset wheel
Tire 33x11.50 on 20x9 0 offset wheel
- Max tire with trimming 295/60-20, 20x9 0 offset wheel
- Features interlocking ‘puzzle-type’ pre-load spacer for easy installation
- Includes DOM tube steel upper control arms with TCT maintenance-free pivot bushings.
- Retains factory turning radius.
- Includes ReadyGuard Powertrain Warranty.
TCT maintenance TCT maintenancefree pivot bushings
Wheel size: 20x9
Offset: 0
Max tire size with trimming: 295/6020
Interlocking preload spacer for easy installation
DOM tube steel upper control arms
TCT maintenancefree pivot bushings
Retains factory turning radius
Includes ReadyGuard Powertrain Warranty
Use of Auto 4 Hi feature not recommended
Interlocking pre Interlocking preload spacer for easy installation
