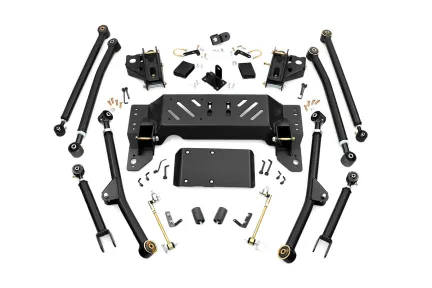

Boasting some impressive features, the ZJ Longarm Kit is a comprehensive package including everything needed for a great suspension lift while maintaining the vehicle's crucial center of gravity. The kit includes adjustable high-clearance X-Flex upper and lower control arms with durable rubber bushings, featuring X-Flex joints. This lift kit features high-clearance components with a front y-link and rear 4-link control arm design. This promotes extreme axle flex while keeping pinion angles optimized.
- Does NOT fit AWD models. Transfer case skid plate will NOT fit models equipped with 249 transfer case. Exhaust will have to be cut and rerouted to make sure it is away from the moving components. Models equipped with a CV style front driveshaft may result in driveshaft vibration. If this occurs, replacing the driveshaft
- Does NOT fit AWD models.
- Transfer case skid plate will NOT fit models equipped with 249 transfer case.
- Exhaust will have to be cut and rerouted to make sure it is away from the moving components.
- Models equipped with a CV style front driveshaft may result in driveshaft vibration. If this occurs, replacing the driveshaft, axle yoke and / or transfer case yoke will need to be performed to rid the vehicle of driveline vibration. CV Driveshaft Example
- Installation Time: 8-9 hours
Aggressive appearance
Increased ground clearance
HD 0.25" thick crossmember
Lower control arms feature high clearance design
Extreme travel long arms keep optimum alignment and give optimum articulation.
X-Flex control arm features:
Durable OEM style rubber bushings.
Lower joints pivot up to 35 degrees.
