Description

You'll never look at a Tundra the same way after installing Rough Country's 6-inch Toyota Tundra kit. This all-inclusive kit is a total transformation for your truck, with durable lifted knuckles, protective skid plate, and all the brackets and hardware needed to set your truck to a factory-like geometry while providing additional ground clearance. The beefy front crossmember features a high-clearance design to help traverse off-road obstacles with no hang-ups.Run larger wheels and tires while giving your truck a one-of-a-kind look and exceptional off-road performance. This kit affords your truck an aggressive appearance and a higher profile that is sure to demand attention. This kit includes Rough Country's Nitrogen-charged N3 Shocks for the ultimate balance in highway ride quality and off-road vibration dampening. Includes Rough Country's Lifetime Replacement Guarantee.

Cutting and drilling is required. Does NOT fit TRD Pro Series models Does NOT fit XSP-X models. Requires 18-inch or larger wheels. Stock 18-inch or larger wheels can be used but can accommodate tires no wider than 11.5-inch. In some cases minor trimming may be needed to clear 35-inch tires. On vehicles equipped with a two piece driveshaft there is the potential for take off vibration, this can be corrected with SKU: 1776BOX1 carrier bearing shim kit. Please view instructions for complete information on proper tire / wheel combinations.
Cutting and drilling is required.
Does NOT fit TRD Pro Series models
Does NOT fit XSP-X models.
Requires 18-inch or larger wheels.
Stock 18-inch or larger wheels can be used but can accommodate tires no wider than 11.5-inch.
In some cases minor trimming may be needed to clear 35-inch tires.
On vehicles equipped with a two piece driveshaft there is the potential for take off vibration, this can be corrected with SKU: 1776BOX1 carrier bearing shim kit.
Please view instructions for complete information on proper tire / wheel combinations.
Recommended Tire & Wheel: 35x12.50R18:18x8.5:5x150:+0:-
35x12.50R18:18x8.5:5x150:+1:-
35x12.50R20:20x9:5x150:-12:-
295/60R20:20x9:5x150:+18:-
35x12.50R20:20x10:5x150:-25:Minor Trimming
Installation Time: 8-10 hours

Unmatched ground clearance due to high clearance crossmember design.
100% precision laser cut materials used in latest computer aided design process.
Levels the front with the rear of the vehicle
Will work with factory 18-inch or larger wheels.
Requires no modification to the stock differential mounts, drivetrain or exhaust.
Lifted front struts help maintain smooth, factory-like ride
Front struts are structurally engineered for lifted applications
Front struts are lifted 6-inches, eliminating the need for strut spacers
Fabricated blocks are stronger and offer a longer lifespan than cast blocks.

Details

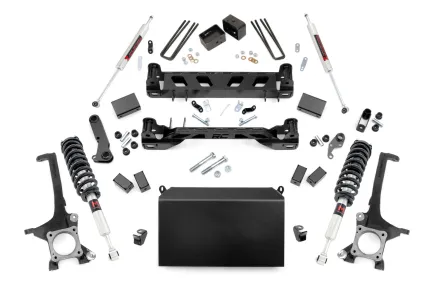

Front Components: lifted knuckles, m1 monotube struts, front crossmember, rear crossmember, steering stops, brake line brackets, differential drop brackets, bumpstop brackets, sway-bar brackets, lower skid plate, hardware
Tire, Wheel, and Offset Info: 35x12.50r18:18x8.5:5x150:+0:-; 35x12.50r18:18x8.5:5x150:+1:-; 35x12.50r18:18x9:5x150:-12:-; 35x12.50r18:18x9:5x150:+0:-; 35x12.50r18:18x9:5x150:+1:-; 35x12.50r18:18x9:5x150:+18:-; 35x12.50r18:18x9:5x150:+20:-; 35x12.50r20:20x9:5x150:-12:-; 35x12.50r20:20x9:5x150:+0:-; 35x12.50r20:20x9:5x150:+1:-; 35x12.50r20:20x9:5x150:+18:-; 295 60r20:20x9:5x150:+18:-; 35x12.50r20:20x9:5x150:+20:-; 35x12.50r20:20x10:5x150:-25:minor trimming; 35x12.50r20:20x10:5x150:-24:minor trimming; 35x12.50r20:20x10:5x150:-19:minor trimming; 295 60r20:20x10:5x150:-19:minor trimming; 35x12.50r20:20x10:5x150:-18:minor trimming; 35x12.50r22:22x10:5x150:-25:minor trimming; 35x12.50r22:22x10:5x150:-24:minor trimming; 35x12.50r22:22x10:5x150:-19:minor trimming; 35x12.50r22:22x10:5x150:-18:minor trimming
Ships in Multiple Boxes: y
Rear Components: fabricated lift blocks, u-bolts, brake line brackets, hardware
Shipping Options: no restrictions
Prop 65 (C, R, or CR): cr
Utv Product: n
Title: rough country - 6 inch lift kit - m1 struts/m1 - toyota tundra 4wd (2016-2021)
Category: susp lift kits 4wd
Install Time: 8-10 hours
Prop 65 Yes/No: yes
Prop 65 - Short Label: warning: cancer and reproductive harm - www.p65warnings.ca.gov
Prop 65 Warning Label: warning - both cancer and reproduction.jpg
