Description

Right off the lot The GM 2500 HD has an impressive stance and a killer look, inspiring Rough Country to build a kit that would add crucial enhancements while taking nothing away from this sharp looking, new model truck. The 5" N3 Suspension Lift for GM 2500 HD features a Non-Torsion Drop Design for better clearance and handling while maintaining proper angles in a "clean and tucked away" fashion. This kit also features Heavy Duty components worthy of the HD badge

Requires minor cutting and drilling. Does NOT fit dually models. Does NOT fit models with Magnetic Ride Control. Gas models may require modification to the exhaust for driveshaft clearance Factory rear overload springs will NEED to be removed on equipped models. Does NOT work with factory wheels. Models equipped with factory 17-inch wheels must use 17-inch or larger aftermarket wheels due to larger calipers/rotor.
Requires minor cutting and drilling.
Does NOT fit dually models.
Does NOT fit models with Magnetic Ride Control.
Gas models may require modification to the exhaust for driveshaft clearance
Factory rear overload springs will NEED to be removed on equipped models.
Does NOT work with factory wheels.
Models equipped with factory 17-inch wheels must use 17-inch or larger aftermarket wheels due to larger calipers/rotor.
Installation Time: 8 - 10 hours
Tire Info: 295/60R20:20x9:8x180:+0:-
295/60R20:20x9:8x180:+1:-
295/60R20:20x10:8x180:-18:Minor Trimming
35x12.50R20:20x9:8x180:-12:-

Maintains factory ride quality
Maintains the stock track width
Torsion bars stay in the factory location
Unmatched ground clearance
Axles maintain factory position and angle
No drilling or modifying of the differential
No drivetrain or exhaust modifications required
Includes application valved N3 series shock absorbers which offer the best in balanced performance for on and off-road use.

Specifications

Details

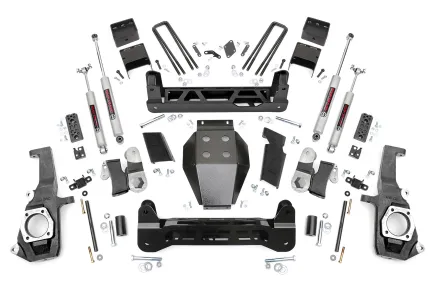

Front Components: lifted knuckles, front crossmember, rear crossmember, differential drop brackets, differential skid plate, non-torsion bar drop brackets, sway-bar link extensions, sway-bar brackets, upper shock brackets, brake line relocation brackets, hardware
Tire, Wheel, and Offset Info: 35x12.50r20:20x9:8x180:-12:-; 295 60r20:20x9:8x180:-12:-; 35x12.50r20:20x9:8x180:+0:-; 295 60r20:20x9:8x180:+0:-; 35x12.50r20:20x9:8x180:+1:-; 295 60r20:20x9:8x180:+1:-; 35x12.50r20:20x10:8x180:-25:minor trimming; 295 60r20:20x10:8x180:-25:minor trimming; 35x12.50r20:20x10:8x180:-24:minor trimming; 295 60r20:20x10:8x180:-24:minor trimming; 35x12.50r20:20x10:8x180:-19:minor trimming; 295 60r20:20x10:8x180:-19:minor trimming; 35x12.50r20:20x10:8x180:-18:minor trimming; 295 60r20:20x10:8x180:-18:minor trimming; 35x12.50r20:20x12:8x180:-44:trimming required; 35x12.50r22:22x10:8x180:-25:minor trimming; 295 55r22:22x10:8x180:-25:minor trimming; 35x12.50r22:22x10:8x180:-24:minor trimming; 295 55r22:22x10:8x180:-24:minor trimming; 35x12.50r22:22x10:8x180:-19:minor trimming; 295 55r22:22x10:8x180:-19:minor trimming; 35x12.50r22:22x10:8x180:-18:minor trimming; 295 55r22:22x10:8x180:-18:minor trimming; 35x12.50r22:22x12:8x180:-44:trimming required
Ships in Multiple Boxes: y
Rear Components: lifted blocks, u-bolts, bump-stop brackets, brake line brackets, e-brake line bracket, hardware
Shipping Options: no restrictions
Prop 65 (C, R, or CR): cr
Utv Product: n
Title: rough country - 5 inch lift kit - ntd - chevy/gmc 2500hd/3500hd (11-19)
Category: susp lift kits 4wd
Install Time: 8 - 10 hours
Prop 65 Yes/No: yes
Prop 65 - Short Label: warning: cancer and reproductive harm - www.p65warnings.ca.gov
Prop 65 Warning Label: warning - both cancer and reproduction.jpg
